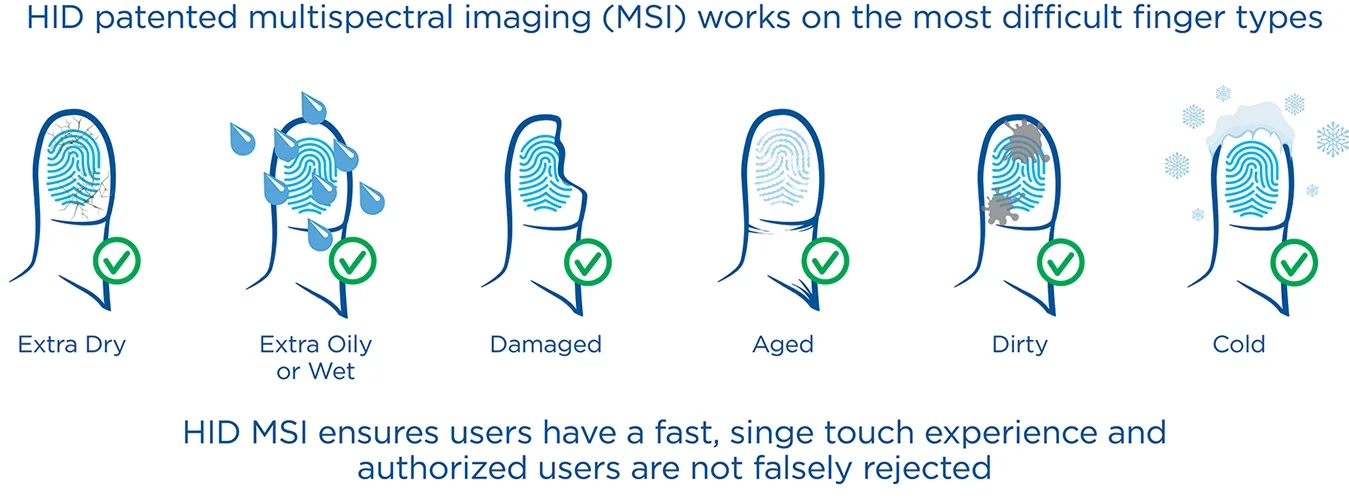

เทคโนโลยี Multispectral Imaging ช่วยให้สามารถจับภาพรายละเอียดทางชีวมิติได้ทั้งบนพื้นผิวและใต้ผิวหนัง ทำให้คุณสามารถมอบประสบการณ์การใช้งานที่เหนือกว่าโดยไม่ลดทอนความปลอดภัย อ่านเพิ่มเติมได้ >> ที่นี่ <<

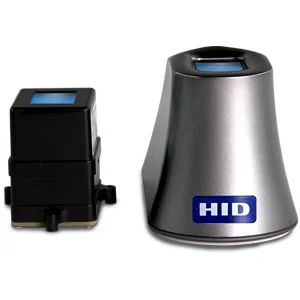

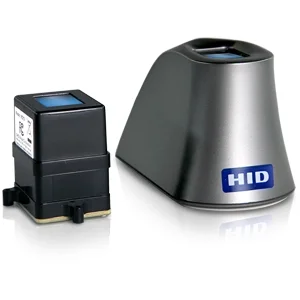

M-Series เป็นโซลูชันที่คุ้มค่า โดยมีให้เลือกทั้งรุ่น USB Desktop สำหรับใช้งานบนโต๊ะทำงาน และ OEM Module สำหรับการฝังรวมเข้ากับอุปกรณ์หลากหลายประเภท

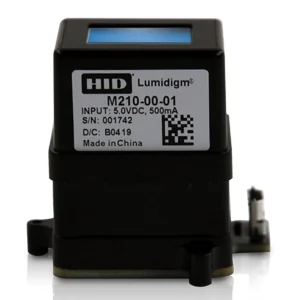

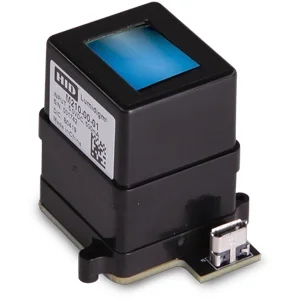

OEM Module สำหรับการฝังรวมเข้ากับอุปกรณ์หลากหลายประเภท

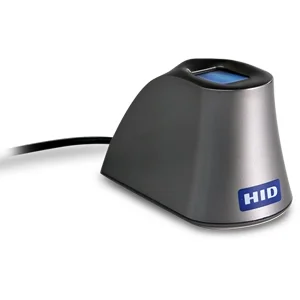

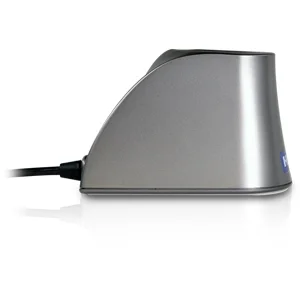

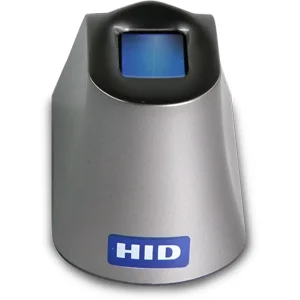

USB Desktop สำหรับการทำงานบนโต๊ะทำงานผ่านสาย USB
Technology
Patented Lumidigm® Multispectral Imaging (MSI)
Output image
resolution / bit depth
500 dpi / 8-bit, 256 grayscale
Platen area
0.55 x .69 (13.9mm x 17.4mm) rectangle, uncoated chemical resistant glass
(no coatings to wear out)
Image output format
Uncompressed or WSQ compressed images (FBI Certified)
Template output format
ANSI 378 and ISO 19794-2 compliant (MINEX III certified)
Presentation Attack Detection (PAD)
ISO/IEC 30107-3, Level 1 Presentation Attack Detection (PAD) certified
Patented Multispectral Imaging (MSI) Live Finger Detection (LFD)
Latent protection
User Configurable
Finger Detection to Image Out
M210 : 1 sec. Embedded ARM (typical)
M211 : 0.35 sec. Windows Host (typical)
Temperature (operating, with enclosure)
-10C to 60C
ESD Immunity
IEC 61000-4-2 level 4 (+/-15kV air discharge, 8kV contact discharge)
USB
M210 : USB 2.0 high speed (480 Mbps), Micro USB connector
M211 : USB 2.0 high speed (480 Mbps), 1m USB cable
Operating systems supported
Windows 10 (64-bit), Android (Lollipop and newer)
Interoperability
ANSI 378, ISO 19794-2, ISO/IEC 19784-1, MINEX III-certified algorithm, WHQL Drivers
Device certifications
CE, FCC, CB, UL
Environmental
REACH, RoHS, WEEE
Ingress
M210 : Ingress at platen IP65
M211 : IP50, ingress at platen IP65
